Heatherwick designed the floating park Little Island

was officially opened to the public

With the principle of letting New Yorkers enjoy nature and art, it is the largest and most creative public space after the High Line Park.

The newest New York City hot spot has been getting a lot of attention

For the past seven years

Because of high construction costs and environmental concerns

It has been shelved and resumed

The budget has increased from $35 million

to $260 million (about 1.6 billion yuan)

This shows the complexity of its design

Today, let’s explore the magic of this floating park.



01

A floating park built in the sky

640 1 28

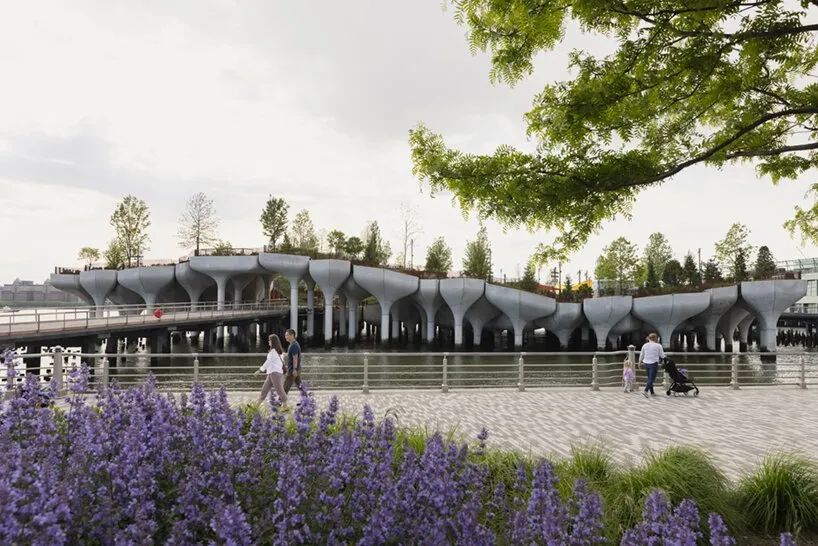

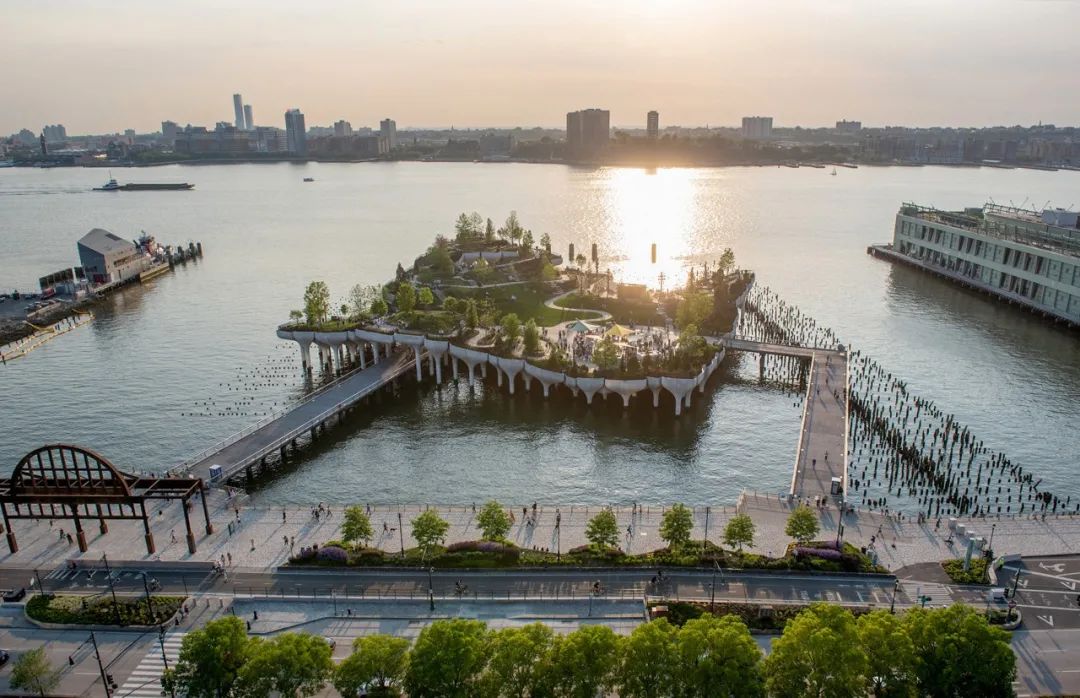

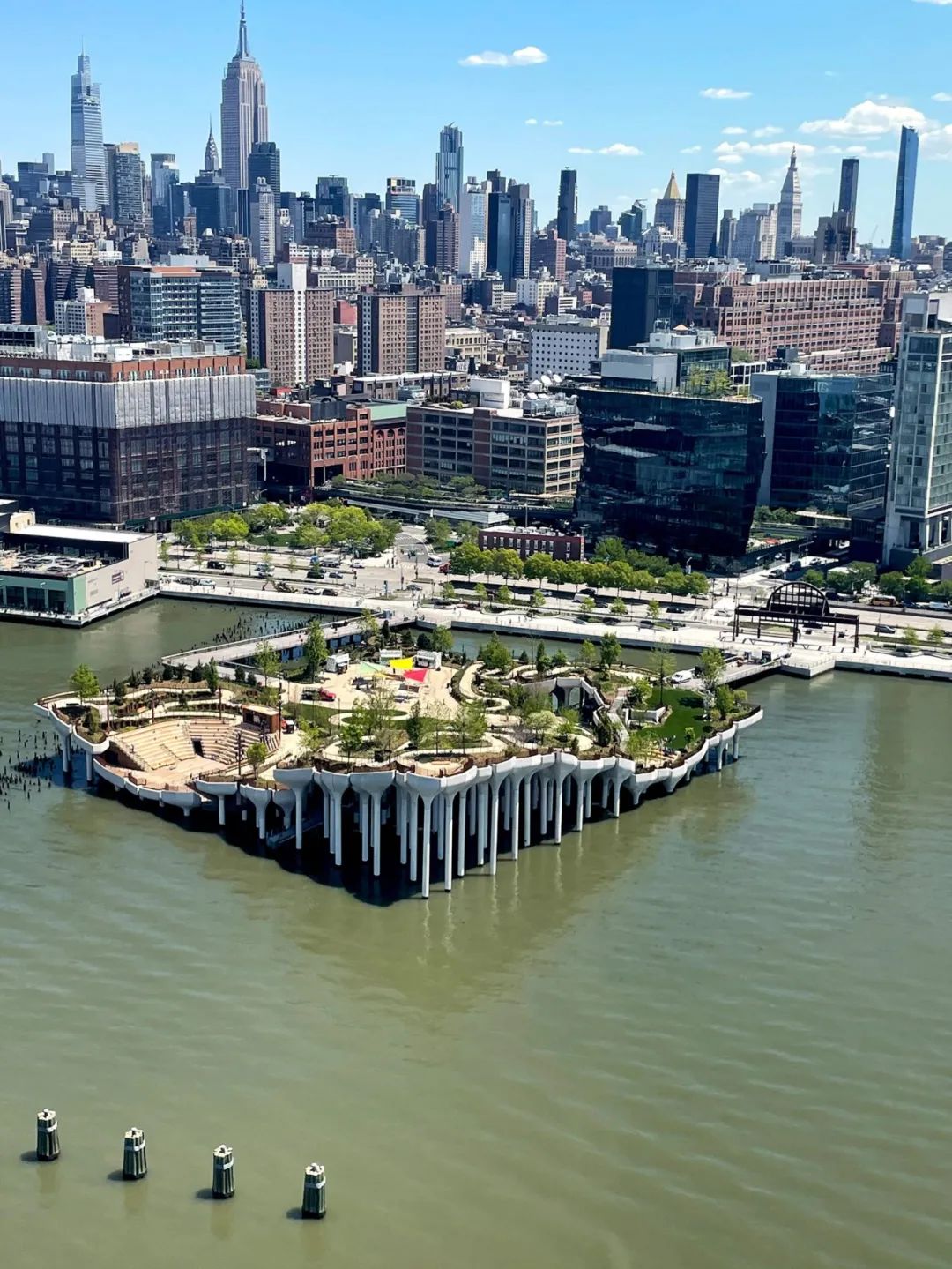

Little Island is located at Pier 55 of the Hudson River

The entire island seems to be built in the air

From a distance, it looks like floating in the air

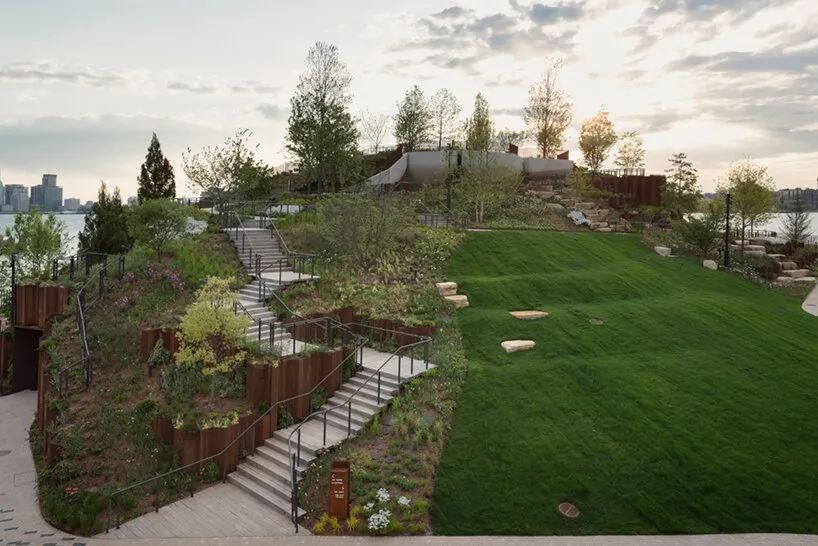

The island is shaded by greenery and undulating

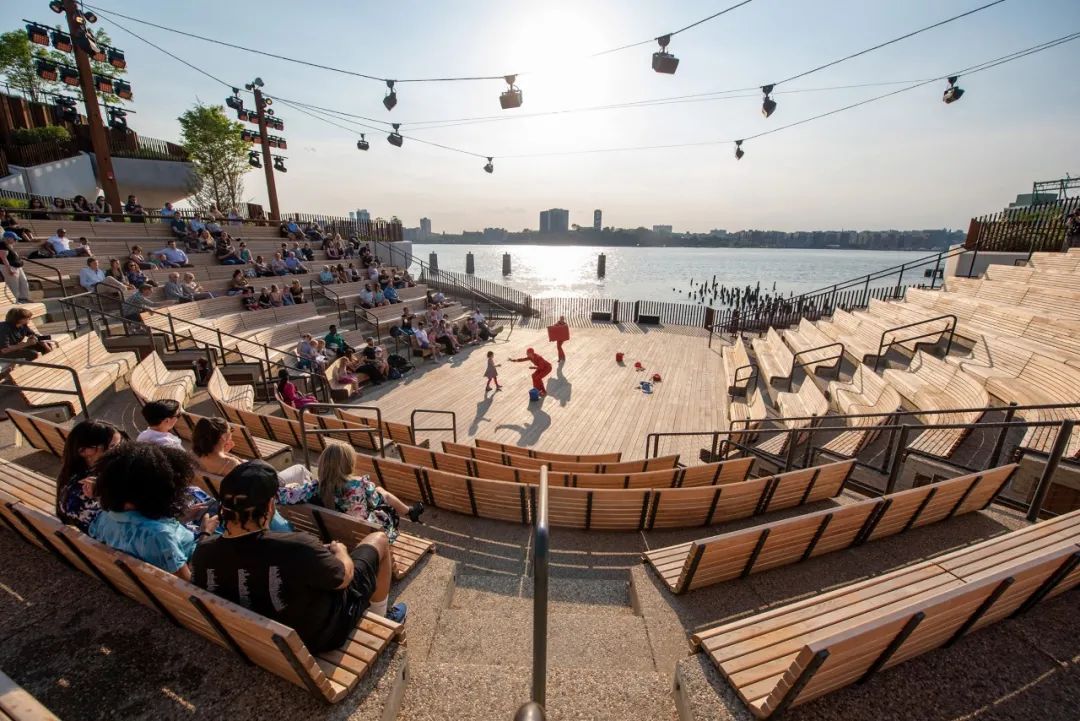

Stage theater, leisure plaza, small bridge, picnic area

Everything is available~

640 3 28

640 2 28

640 4 28

640 5 28

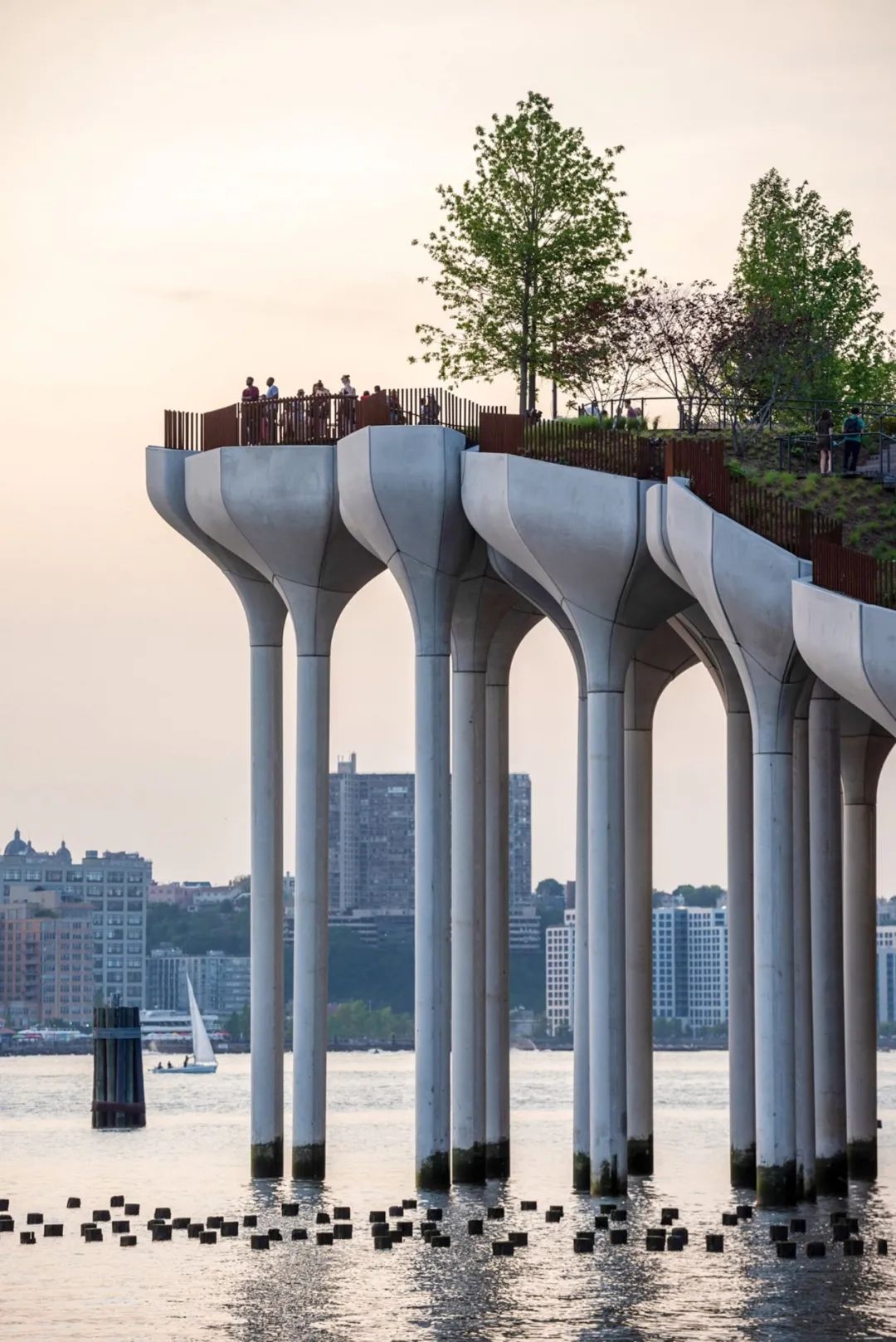

267 mushroom-shaped concrete pillars

Slowly rise from underwater

creating a unique exterior form

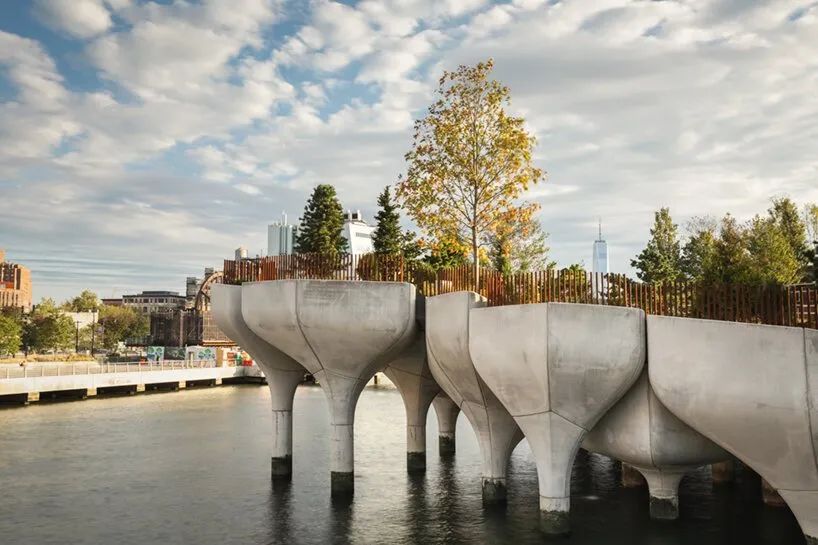

The top of each column forms a square planter

Each planter is connected at different heights in a mosaic fashion

creating an undulating island landscape

640 6 27

640 8 27

640 7 27

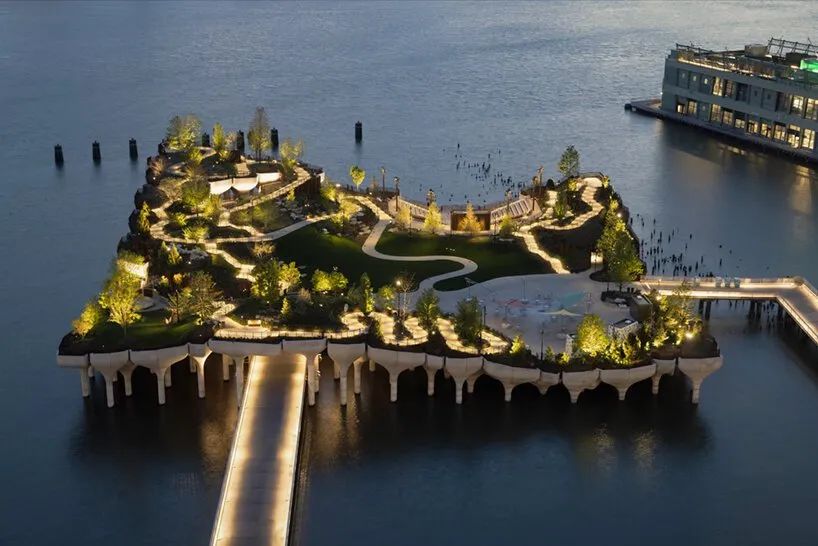

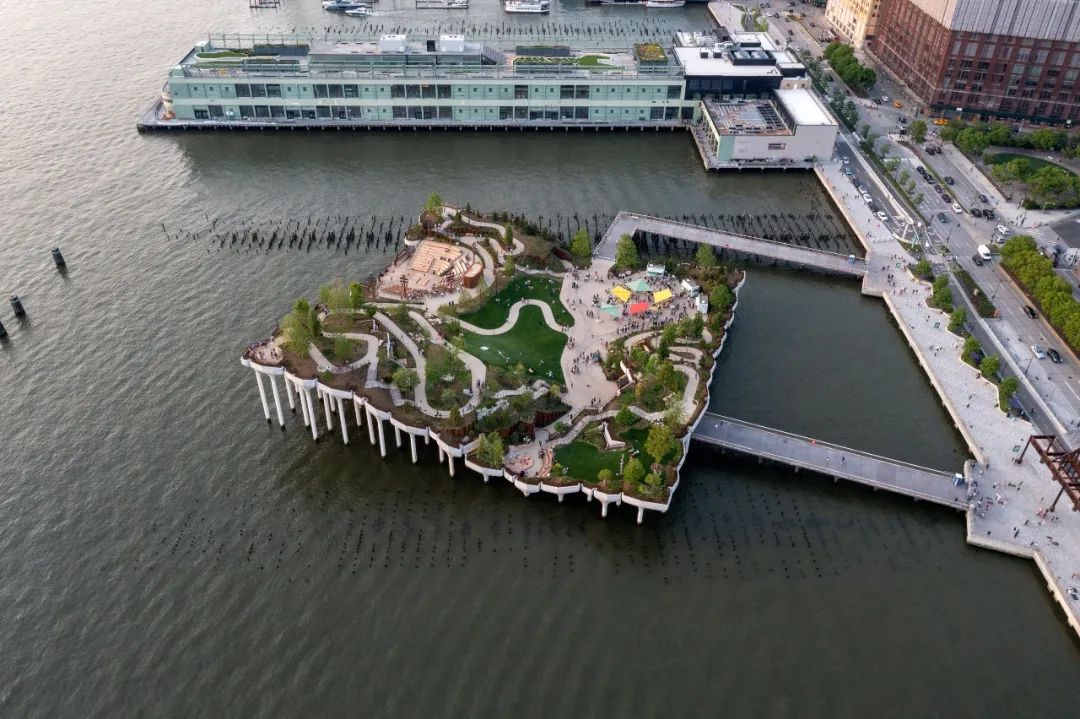

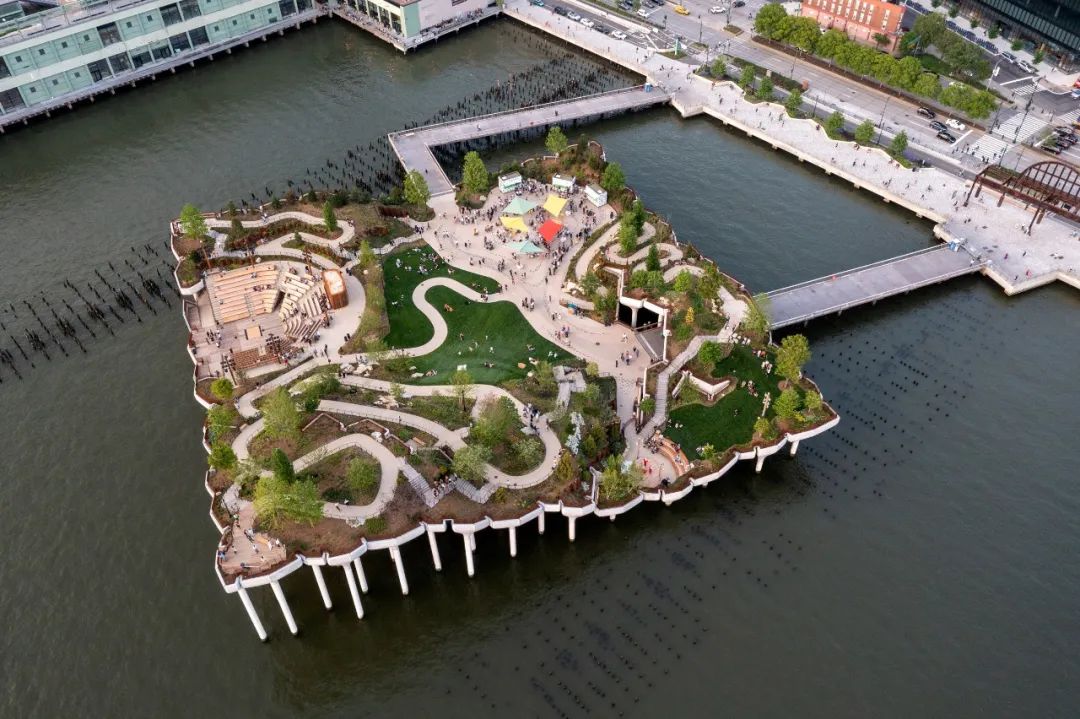

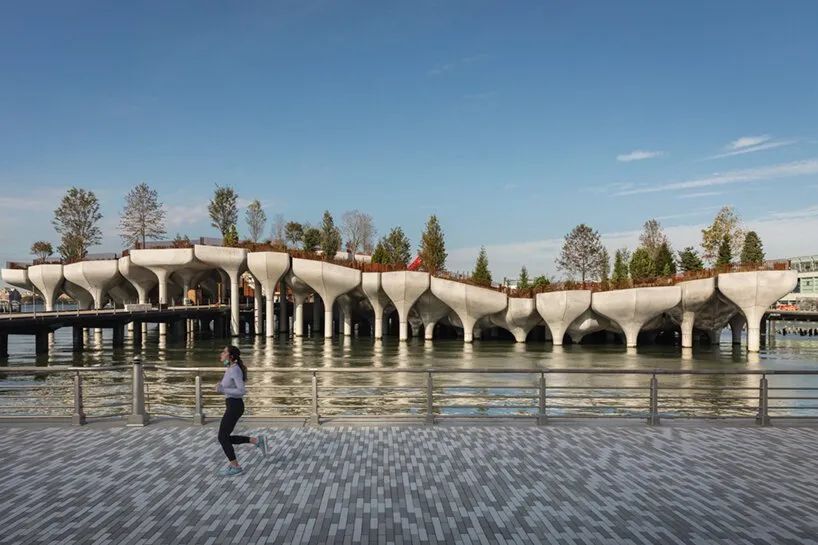

The island covers 2.4 acres (approximately 9,712 m²)

On this undulating park platform

Contains 66,000 potted plants

Over 350 varieties of flowers and 114 trees

The park consists of three divisions.

Playground, Open Air Theater, and Wooded Open Space

The site meanders and undulates

Where the site meanders to form a floating island.

640

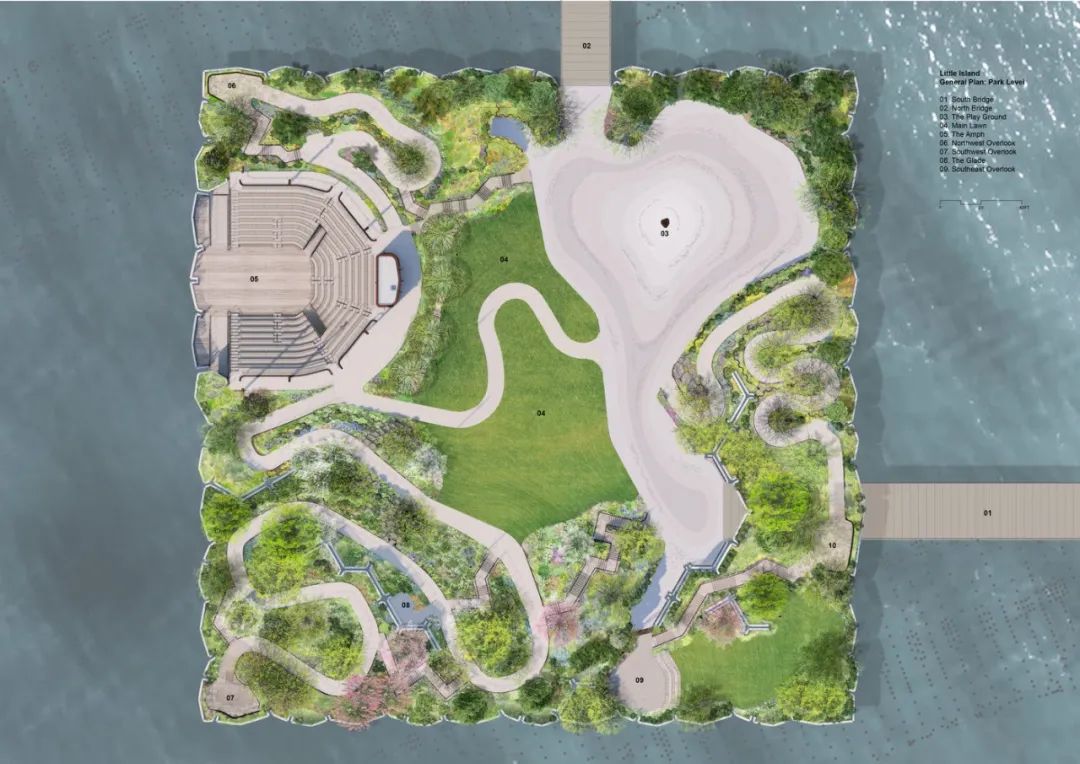

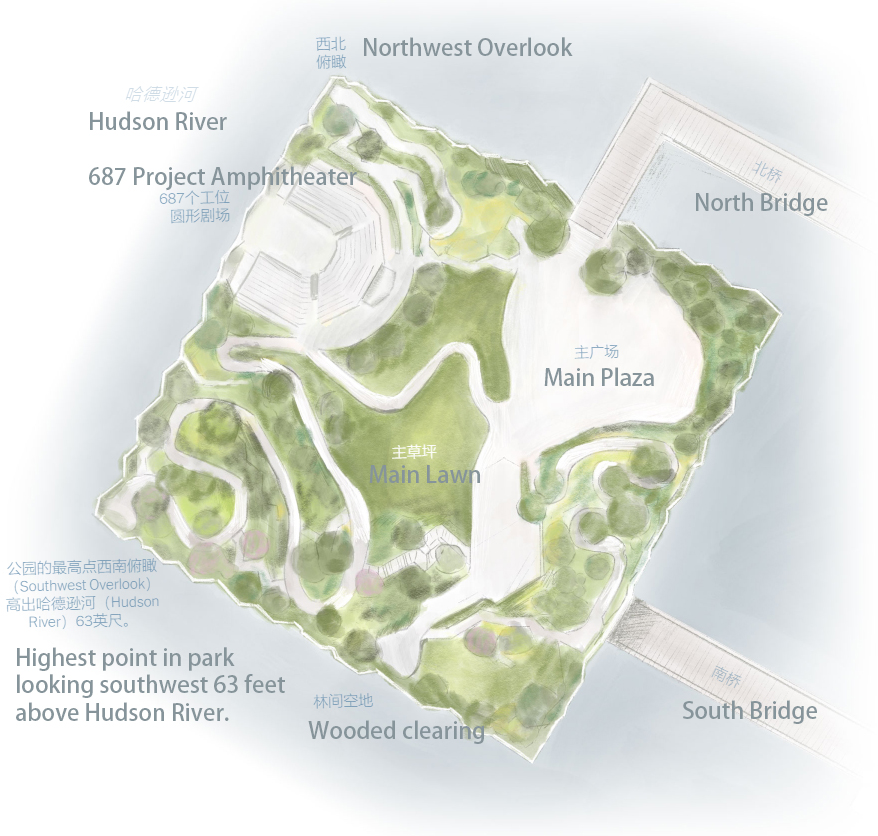

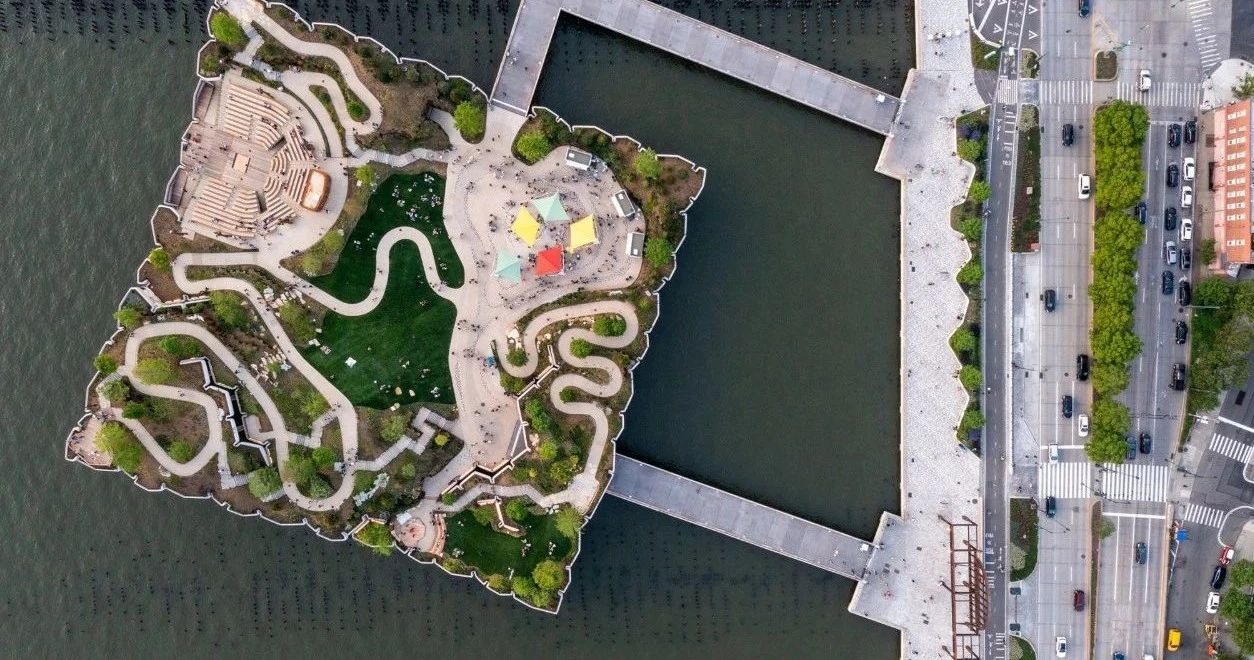

▲Plan of the Old Pier Trail

0 2 28

640 10 27

The biggest highlight of the project is the undulating structural tube

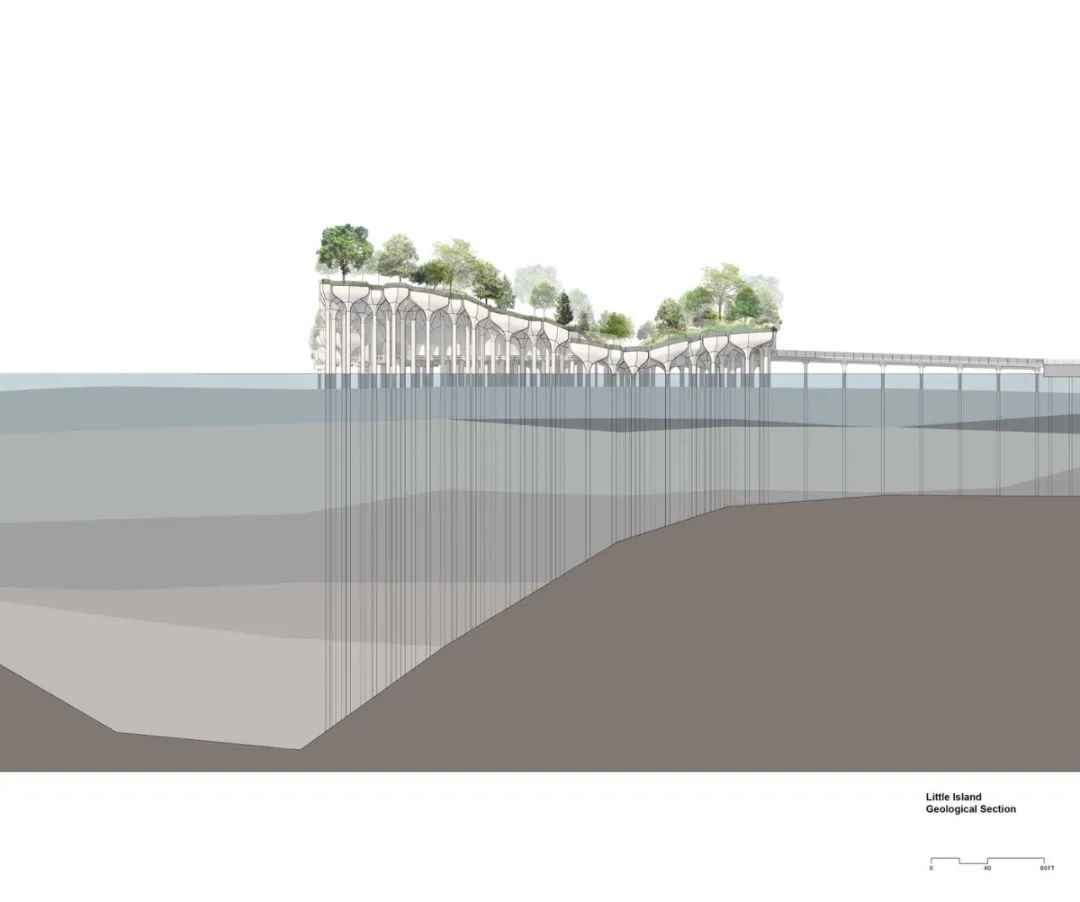

The unique concrete column is 0.9m in diameter and 61m deep underwater

The shape is very new and unique



02

Design Concept

The design work for the renovation of this wavy landscape park

by heatherwick studio and mathews nielsen

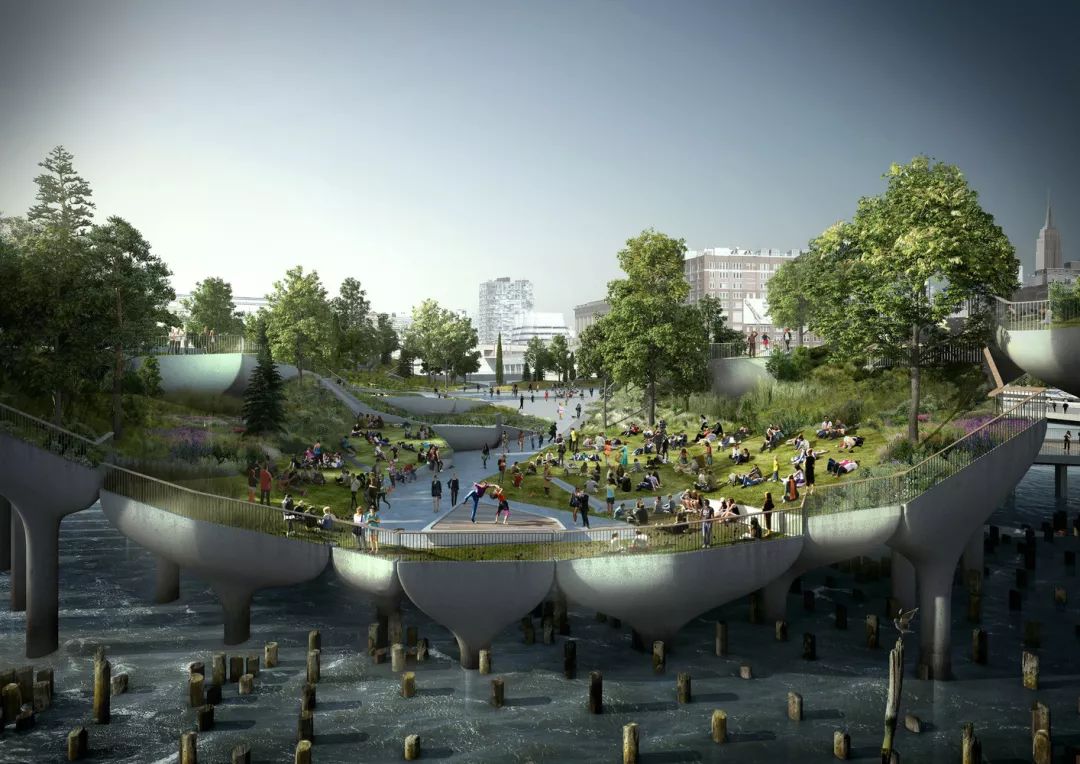

The park is erected on 300 mushroom-shaped concrete columns

The park has a unique shape and includes a venue for outdoor performances

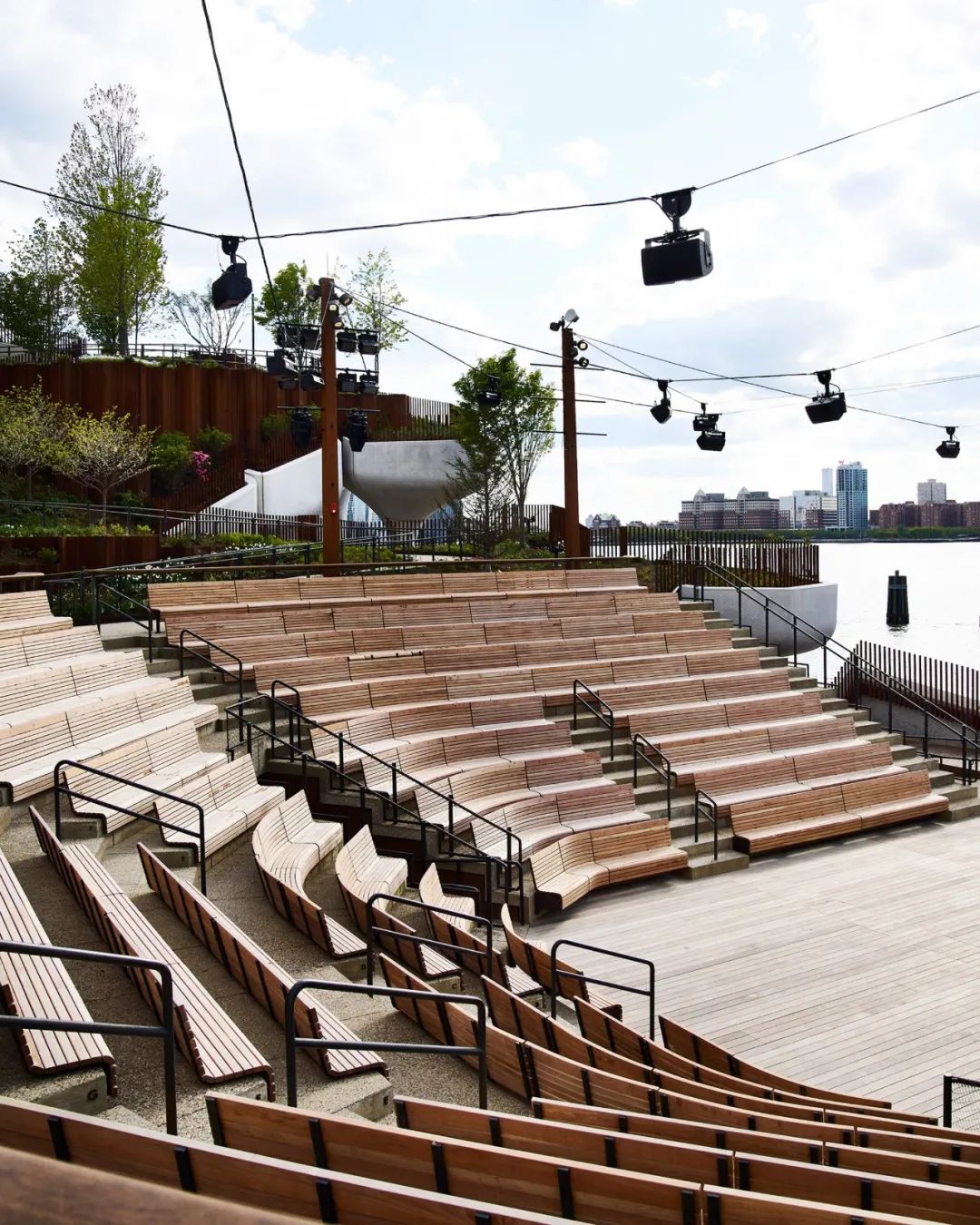

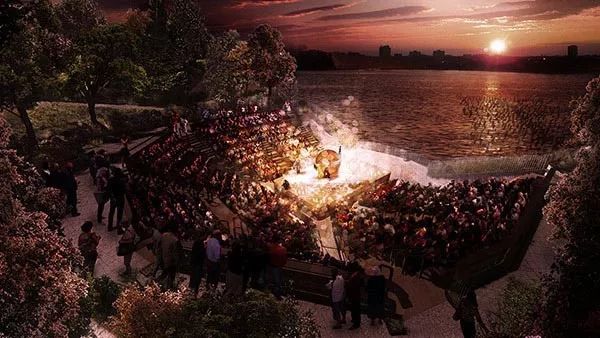

There is an amphitheater with a capacity of 800 seats

Visitors can reach the park from the shore of New York City through two parallel visitor paths

The park is accessible from the shore of New York City

Open space to accommodate a variety of recreational needs

640 11 27

640 12 27

640 13 26

640 14 26

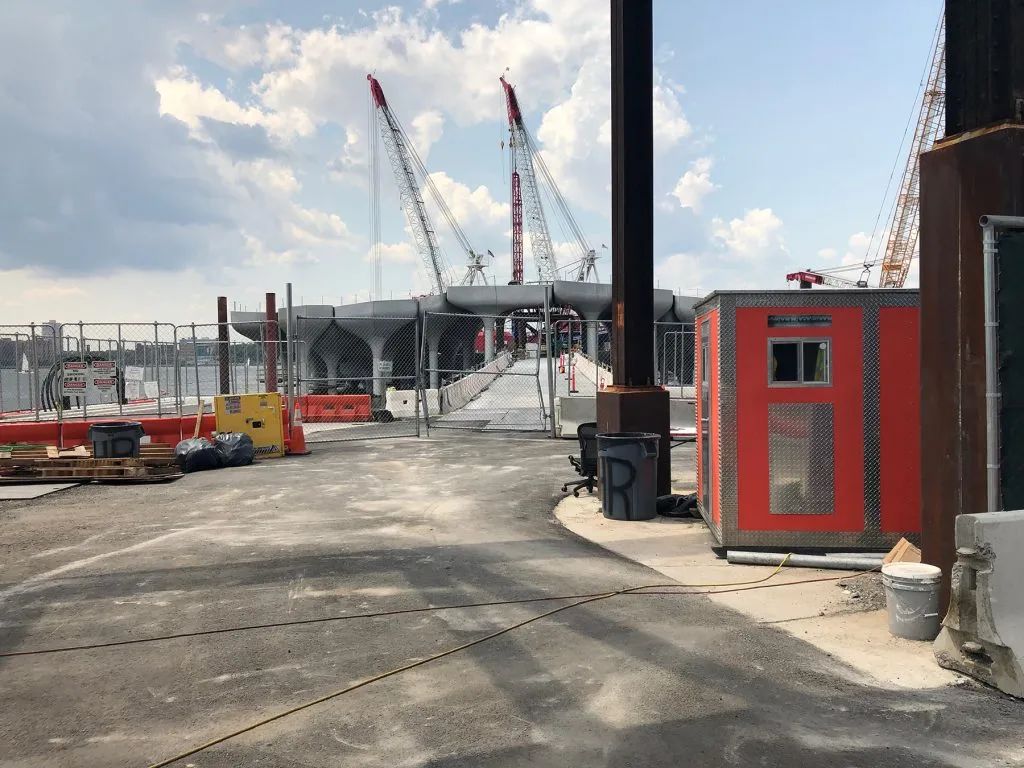

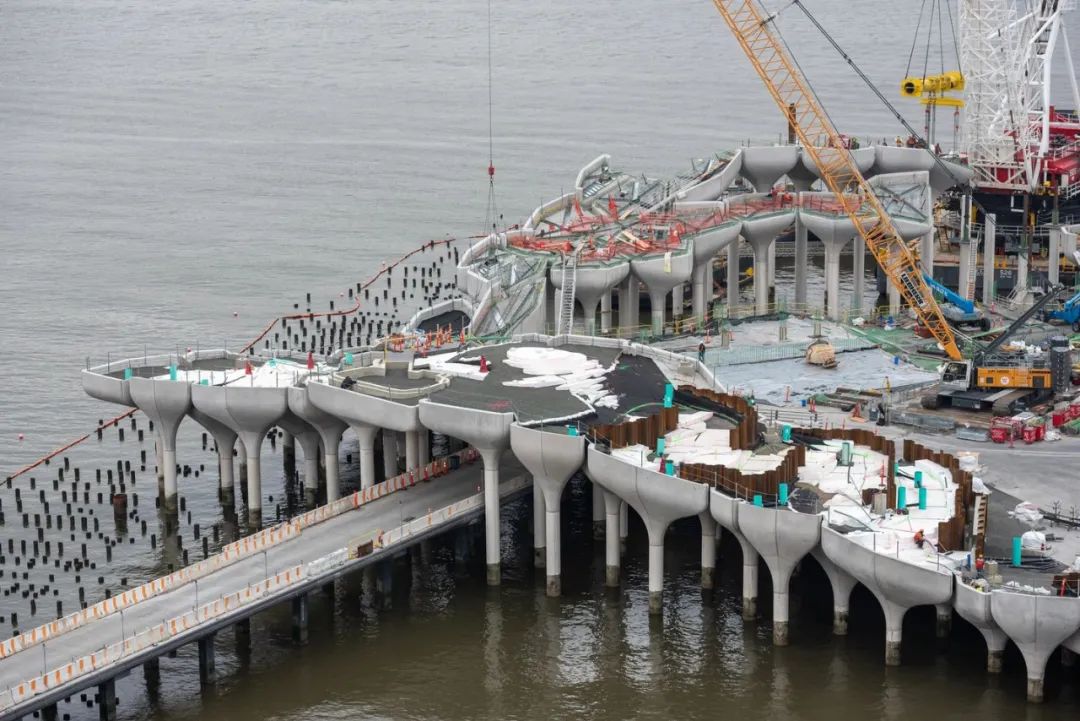

The park entrance construction site @ Michael Young



One of the highlights of the project is the undulating structural tubes

The designers defined it as a structural container that can be planted

to create a diverse topography with this element

As the structure is finally coming together

the first pre-purchased trees have arrived on site

The subsequent work will focus on the creation of dense greenery

The designer’s green design will protect the city from storms

It also serves as a marine sanctuary for bass

640 15 26

640 16 26

640 17 26

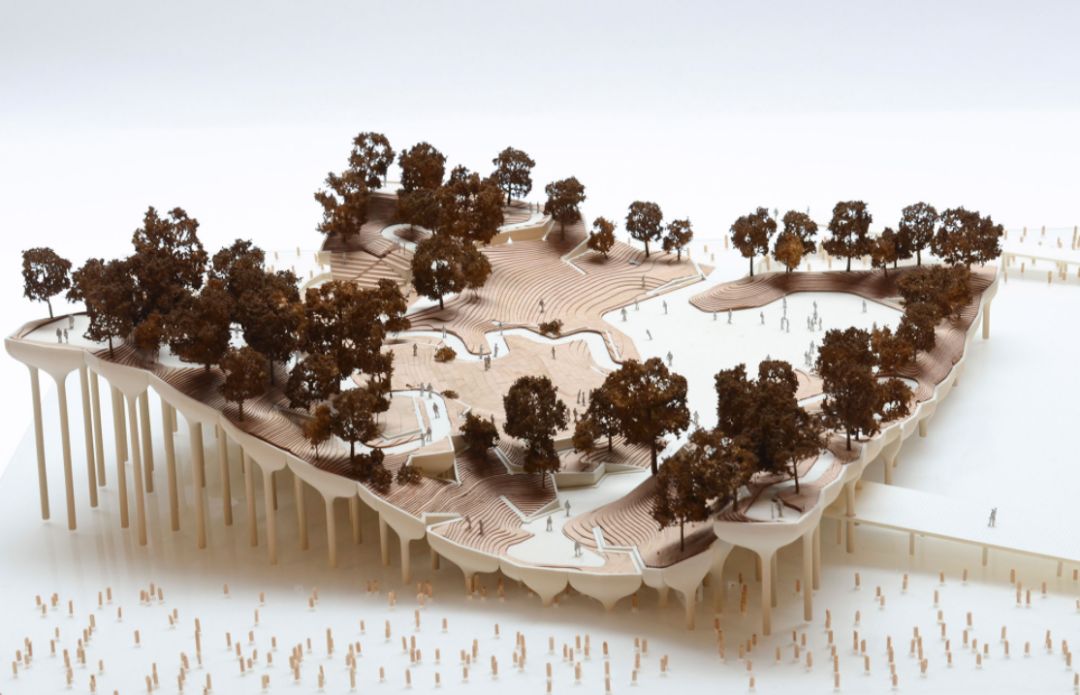

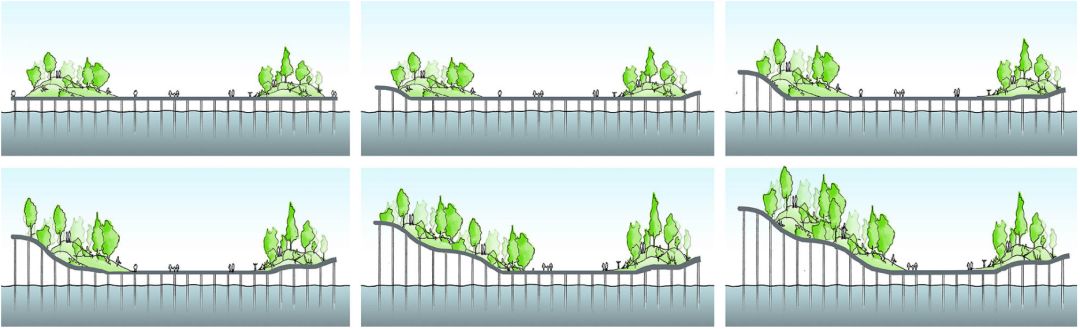

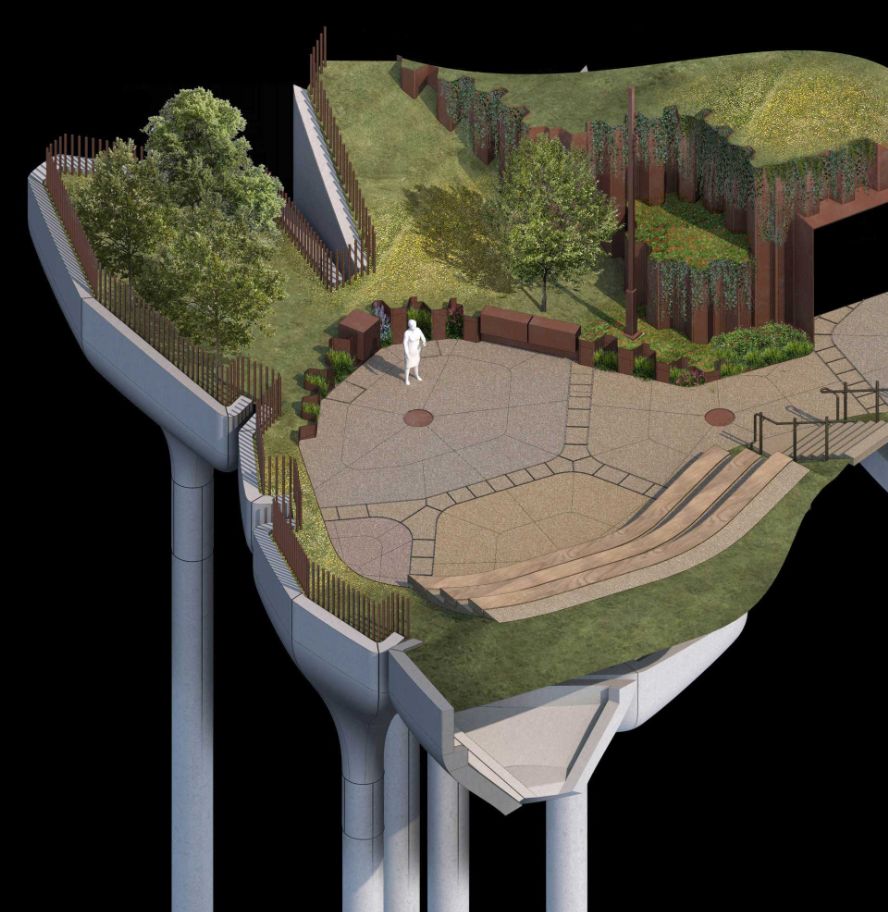

Undulating structural tubes

640 18 26

300 mushroom-shaped concrete columns

rise slowly from underwater

Creating a unique exterior form above the water

The top of each column forms a square planter

Each planter is connected at different heights in a mosaic pattern

forming an undulating landscape

Like a leaf floating in the water

640 19 26

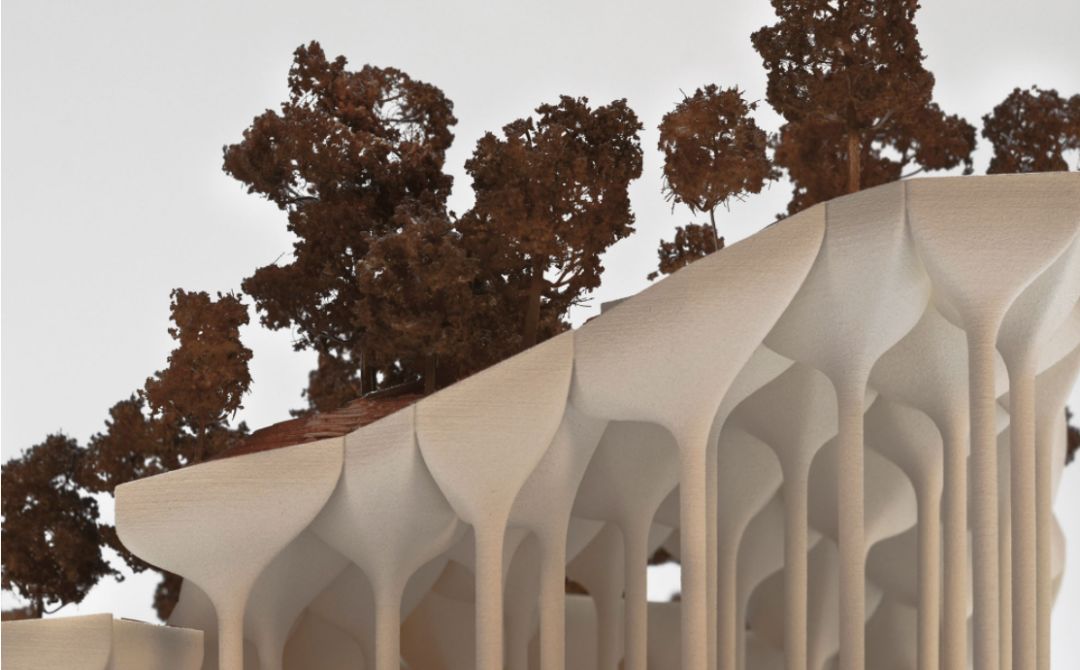

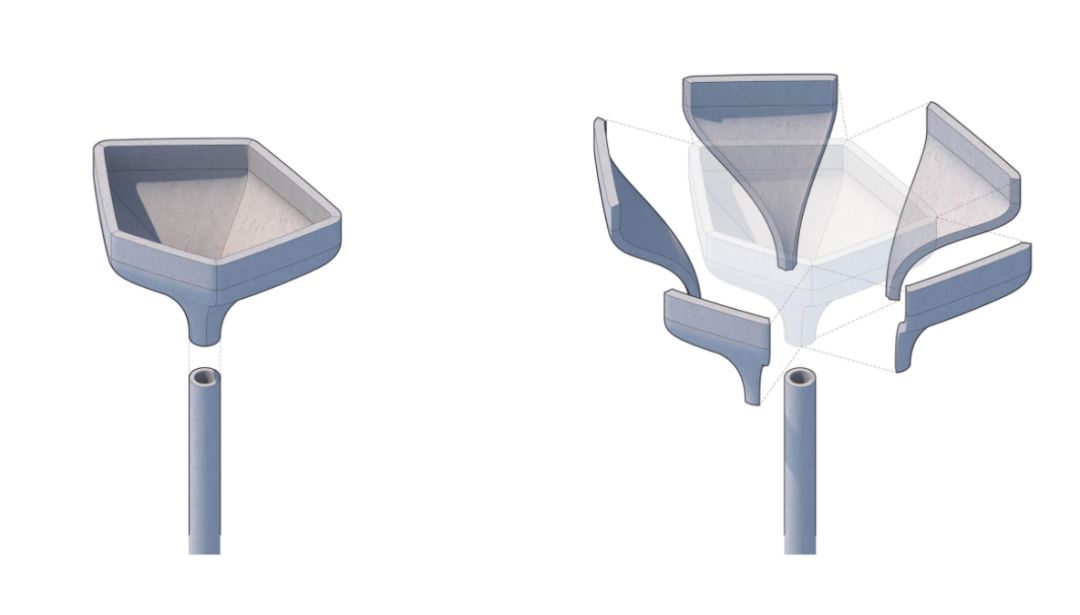

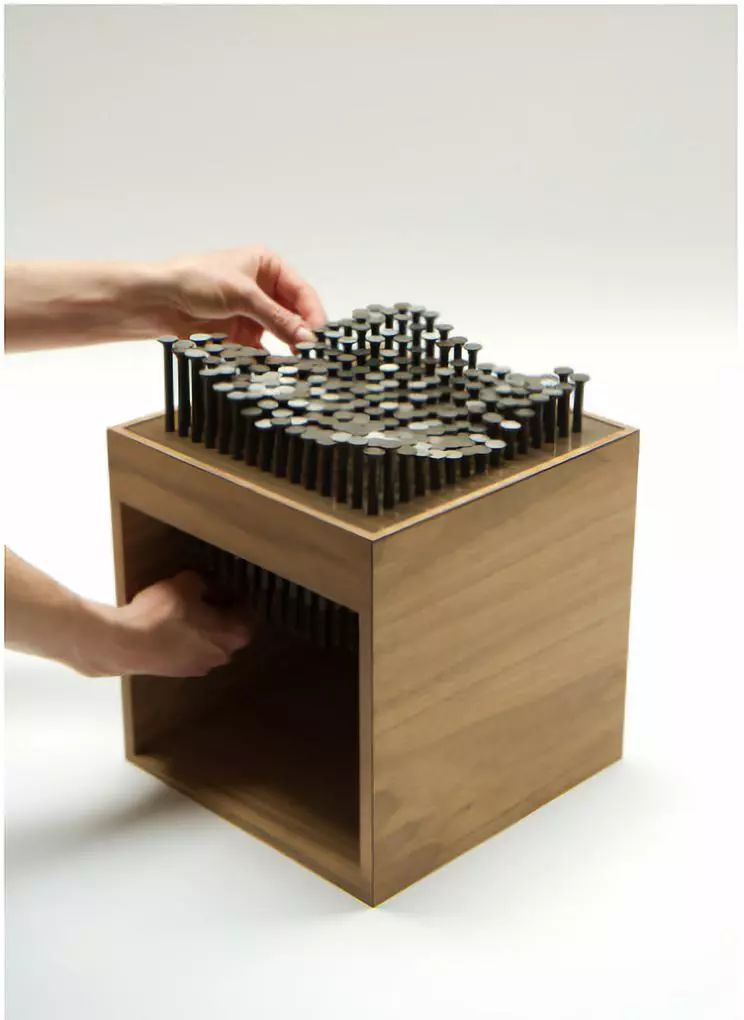

Column model

640 20 25

Concrete columns slowly rise underwater

640 22 24

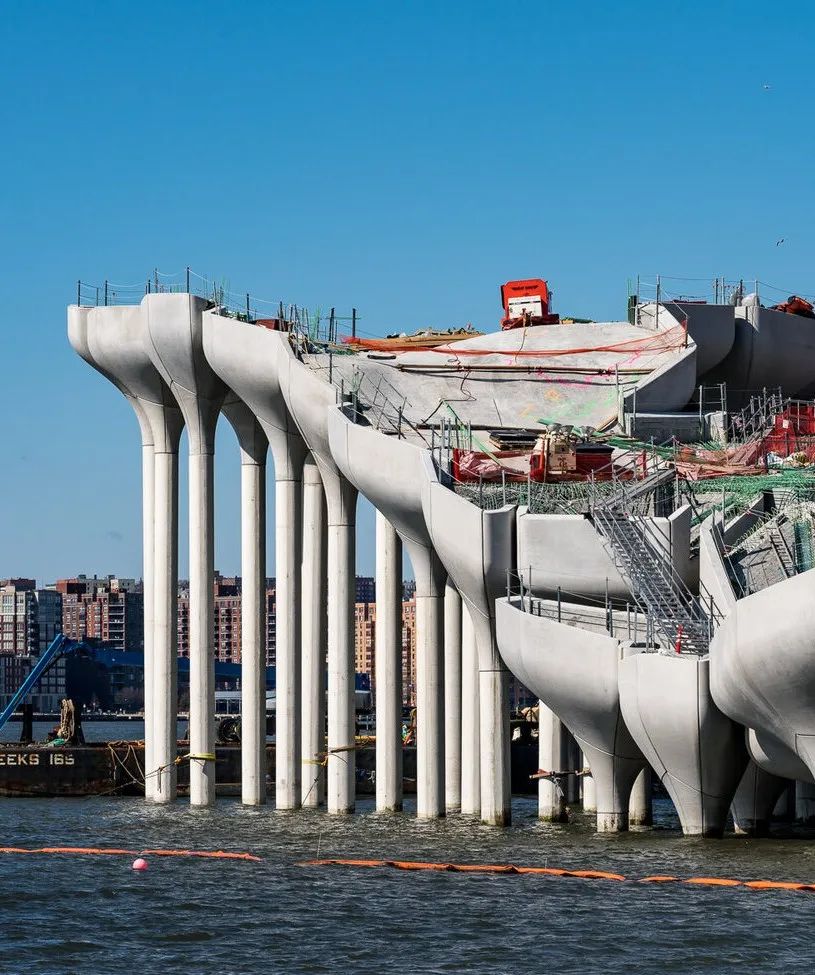

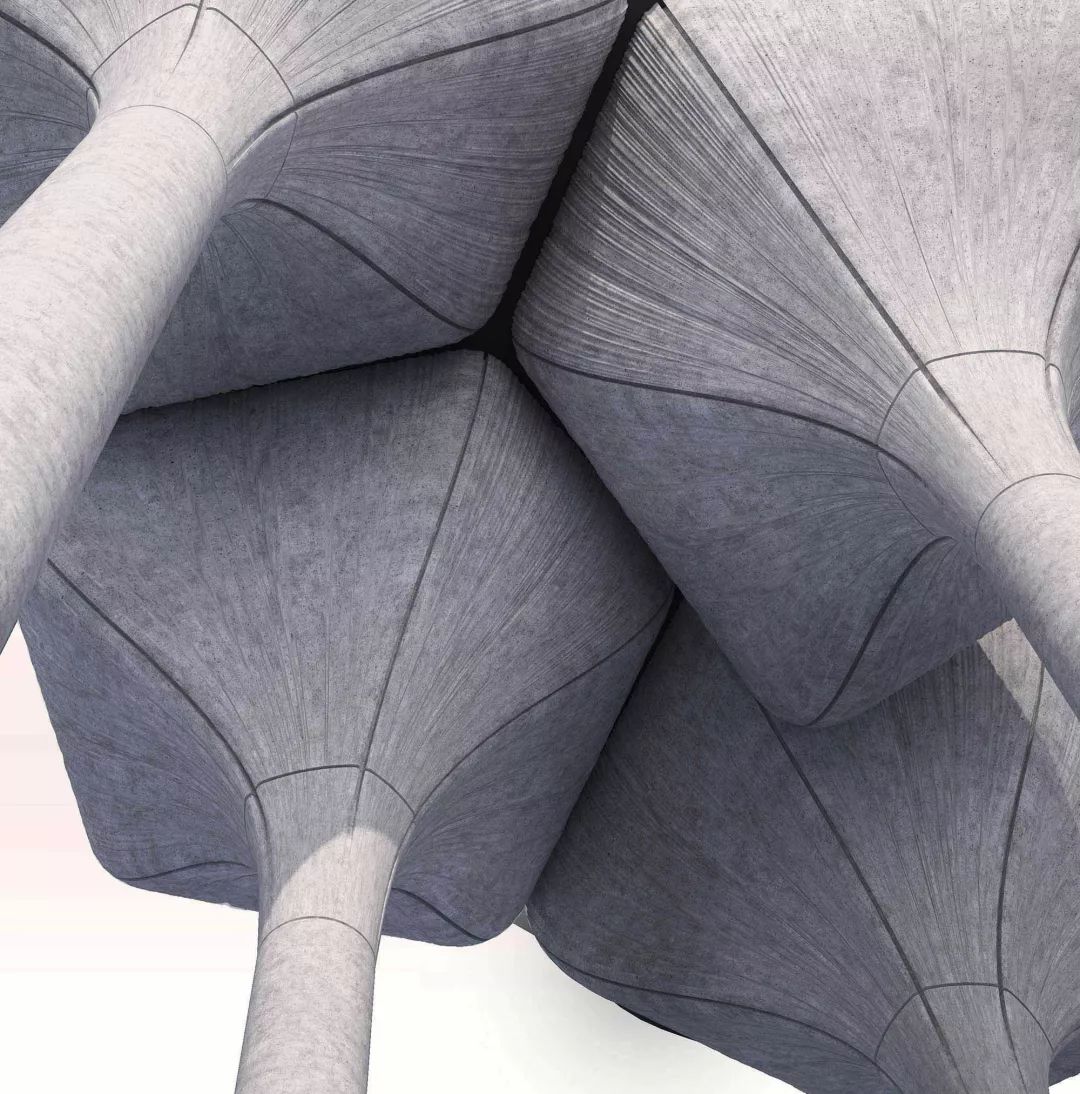

Concrete column surface texture

640 24 20

@fieldcondition

640 25 17

The designers selected over 100 different species of trees and plants

to suit New York’s climatic and environmental conditions

to create a vibrant space for art, education and community.

At the same time, the designers sought to use the project

to express their possibilities and resilience to climate change

To provide a strong protective barrier for New York City



03

Construction Process

The island contains a total of 267 concrete structural tubes

These unique columns and “planters”

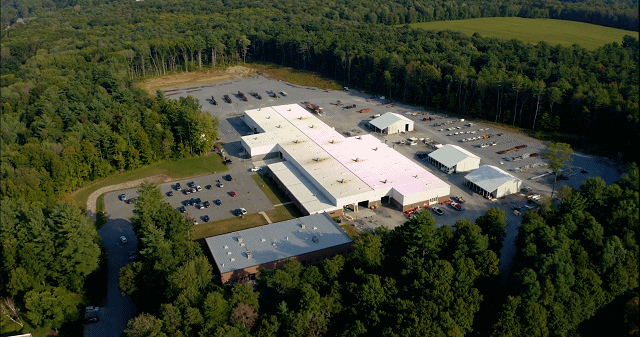

were prefabricated at the Fort Miller Company

concrete plant

640 1 12

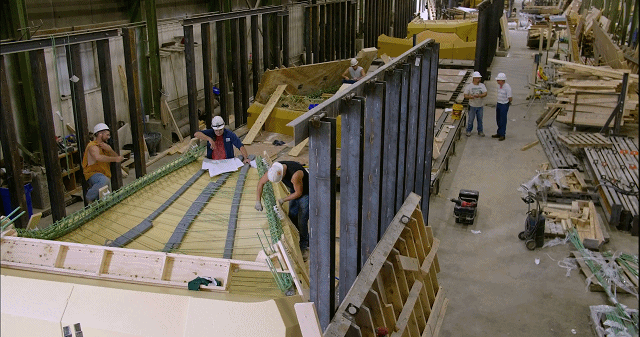

Mold Making

640 24

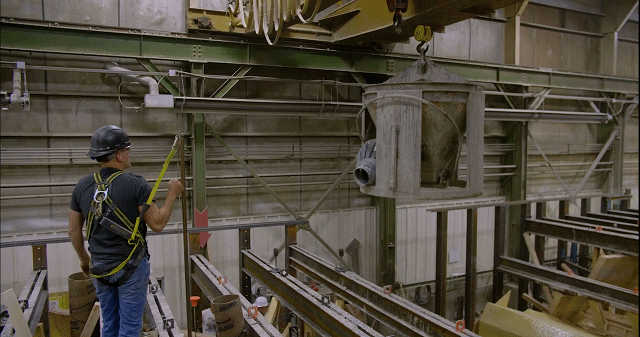

Concrete Pouring and Forming

640 2 4

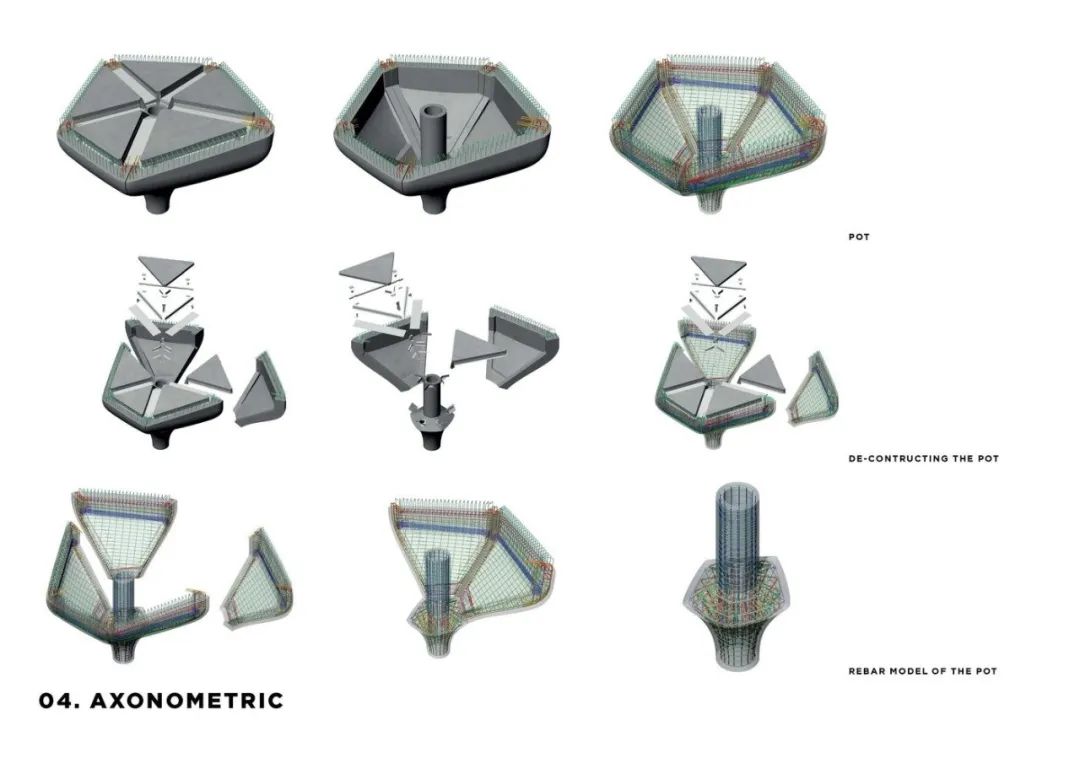

640 27 15

640 26 17

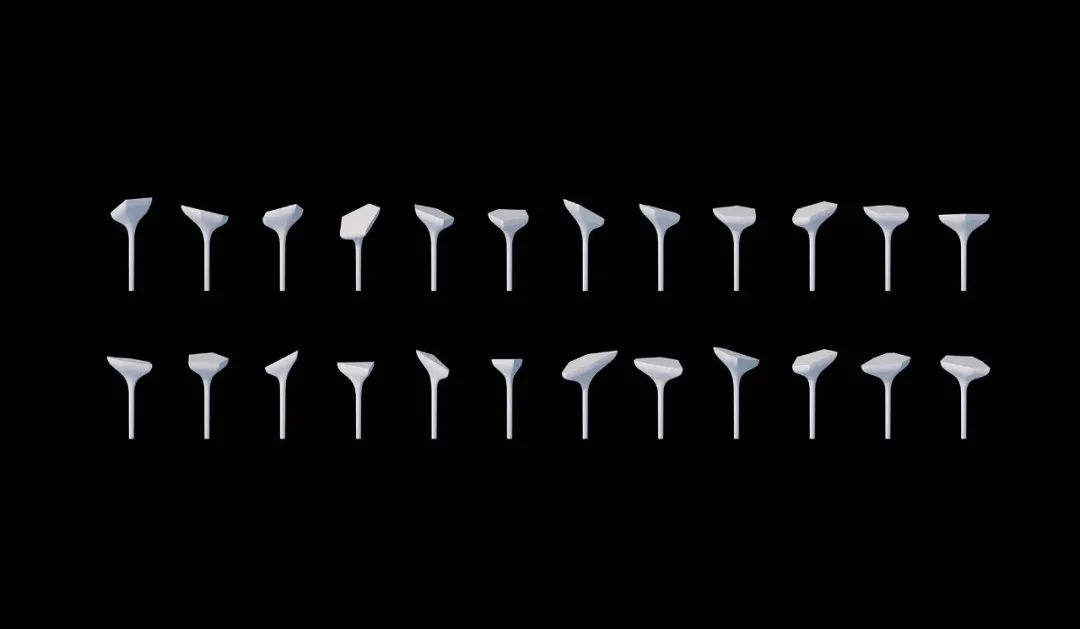

A total of 39 different formwork types were created during the process

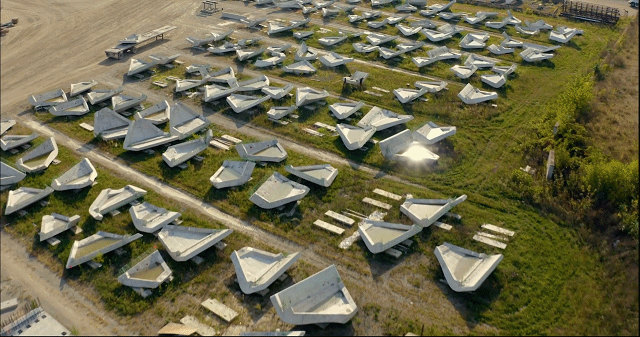

655 precast concrete components were made

640 5 3

640 3 3

640 28 14

640 29 13

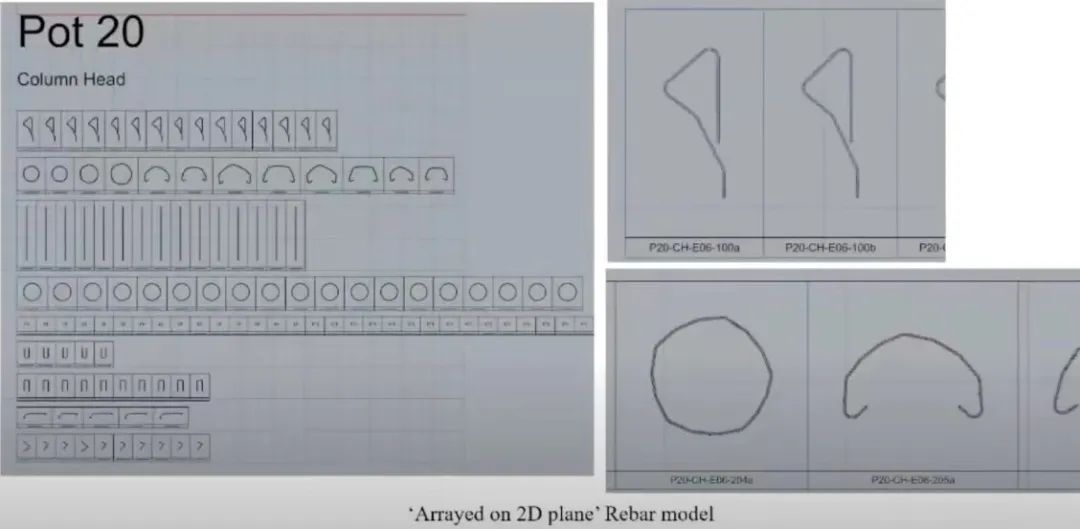

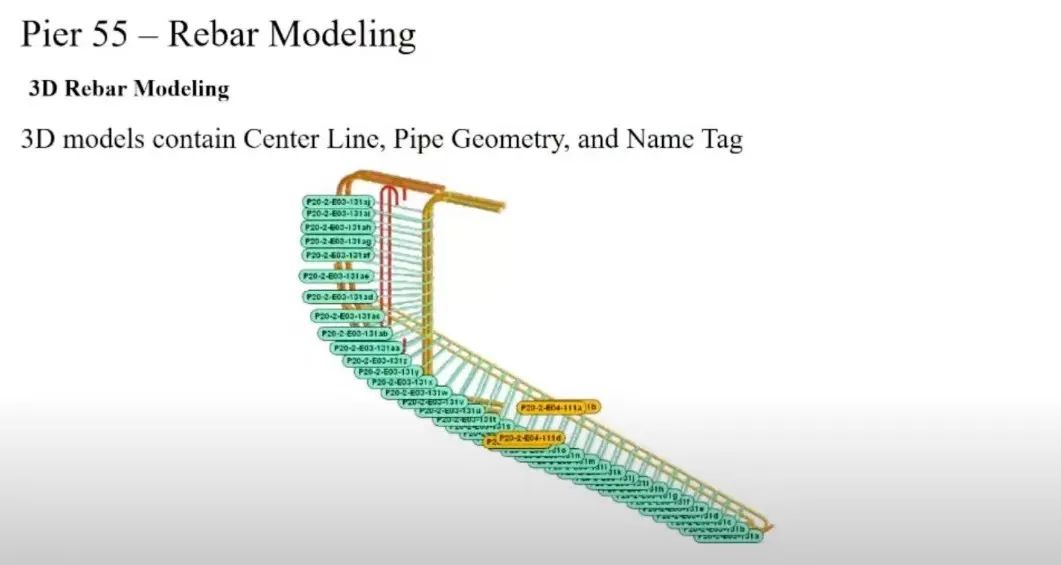

▲Section of reinforcing steel

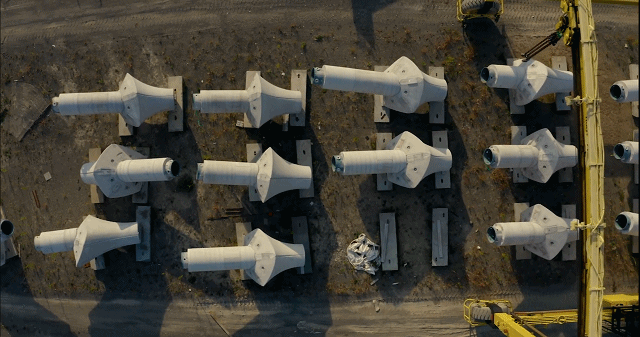

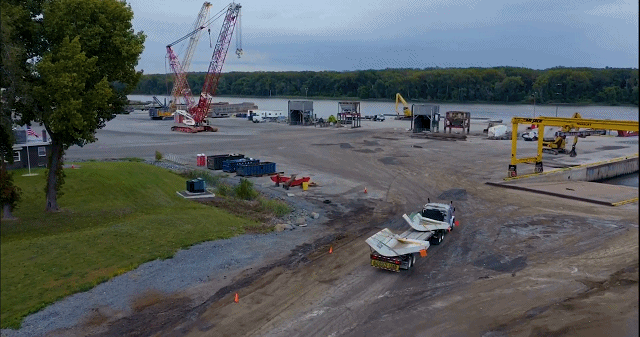

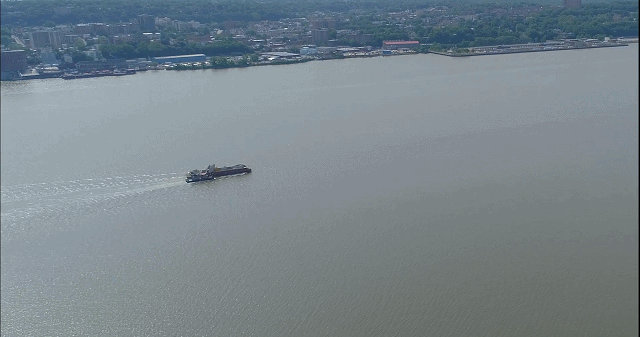

The components were transported from the factory to the port

and then transported by water to the project site

640 4 3

640 9 1

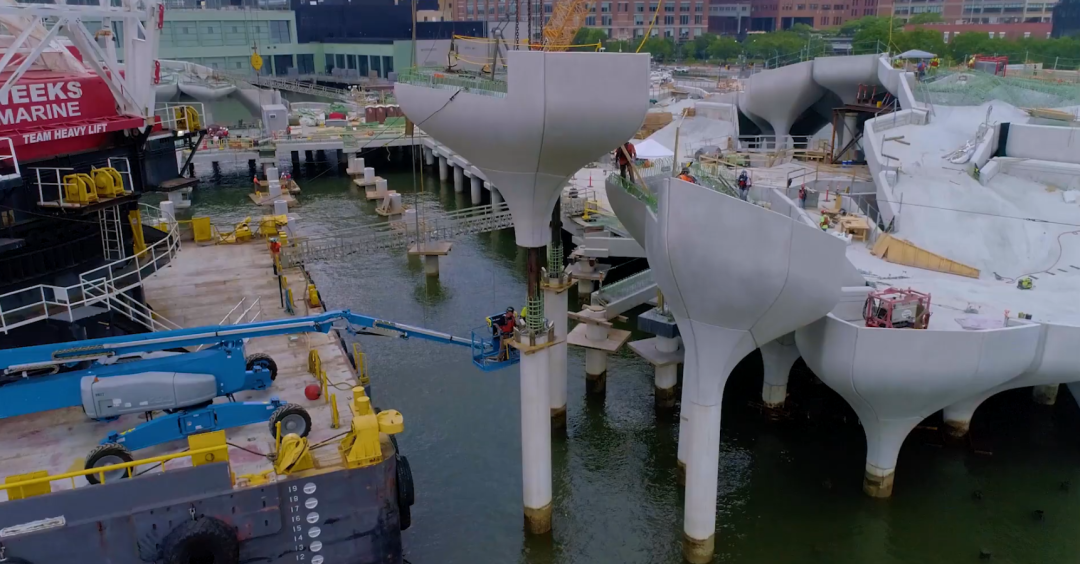

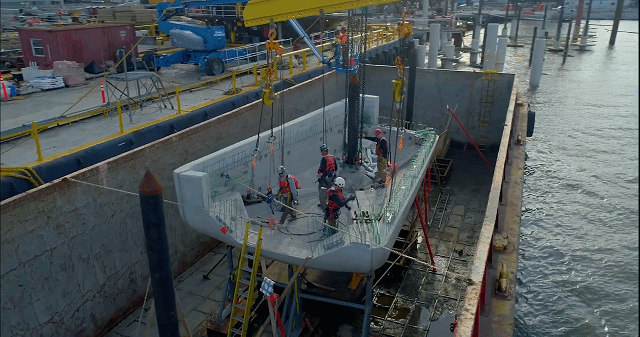

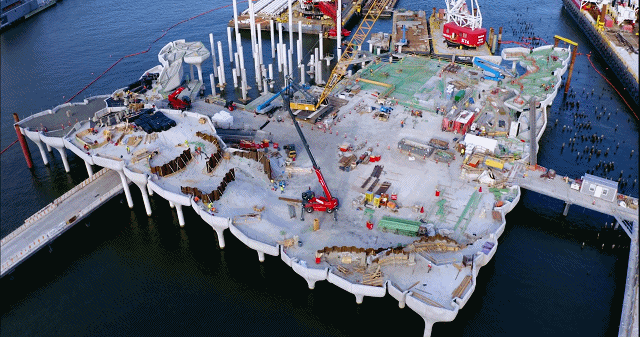

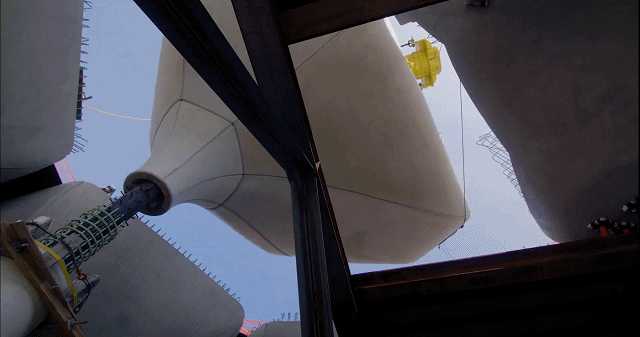

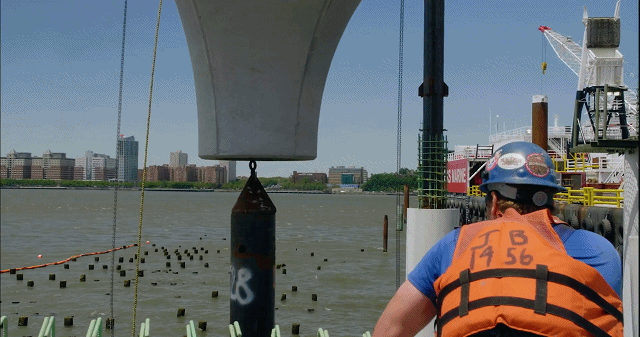

The prefabricated mantle is lifted on site

Precisely lifted onto the concrete pile foundation

640 8 1

640 7 3

640 6 3

The concrete piles are 0.9m in diameter and 61m deep underwater.

640 30 13

Final installation, testing and adjustment

640 1 13

640 10 1

After assembly

The landscape design firm MNLA began work on the design

Since all plants require a lot of drainage and soil bedding

So they designed a complex system

to address the extreme slope changes

640 31 12

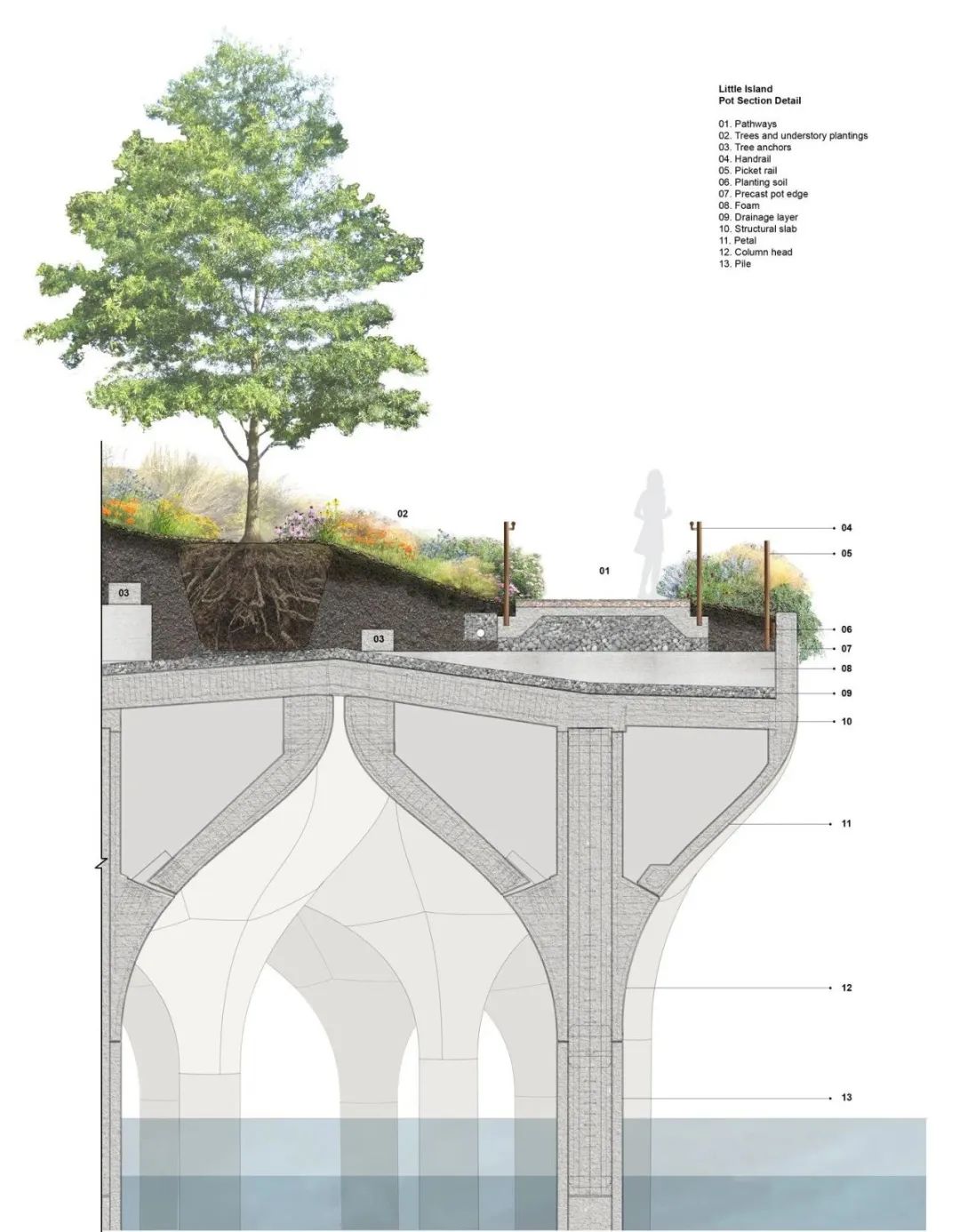

From the concrete slab, a 1.9cm drainage mat was added in sequence

followed by a 45-cm layer of gravel

Between 30cm and 60cm of foam soil

And finally, the soil is laid down

640 32 12

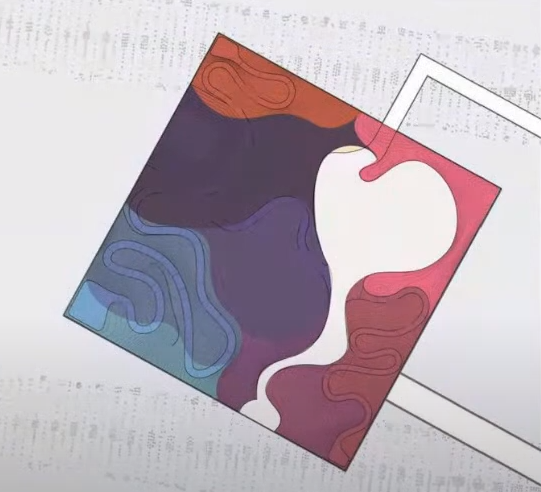

MNLA has divided nine different zones to accommodate different

9 different zones were defined to accommodate different climate changes

It also reduces the burden on the concrete structure

640 2 8

Evergreen trees were planted in the north and northeast to

shield the highway and winter winds

In the higher southwest, sheet pile retaining walls were added

and geotechnical foam to create planting beds

The higher south corner was designed to allow sunlight to reach the area below

640 33 10

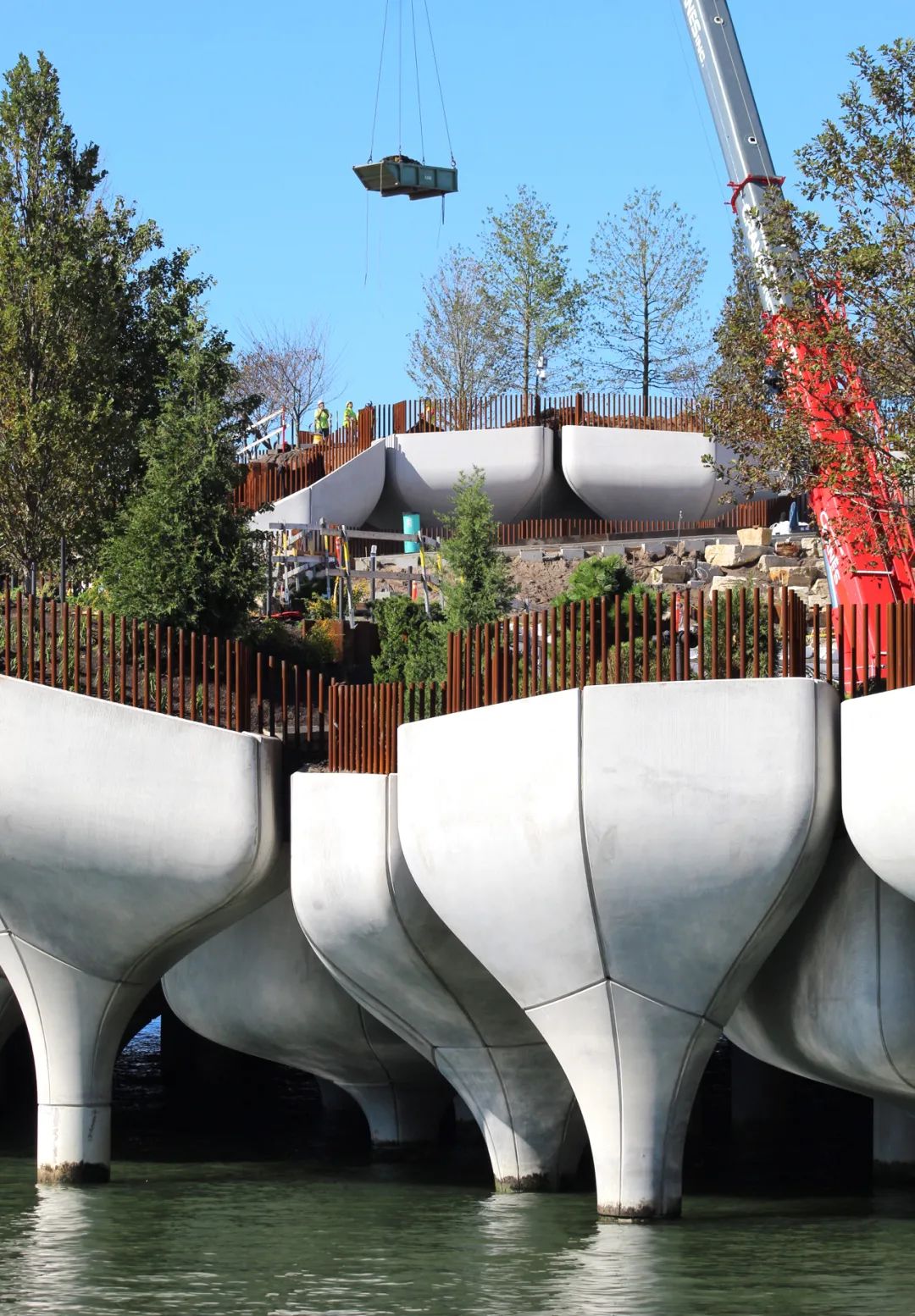

Soil is loaded onto the island by hydraulic boom crane

640 34 9

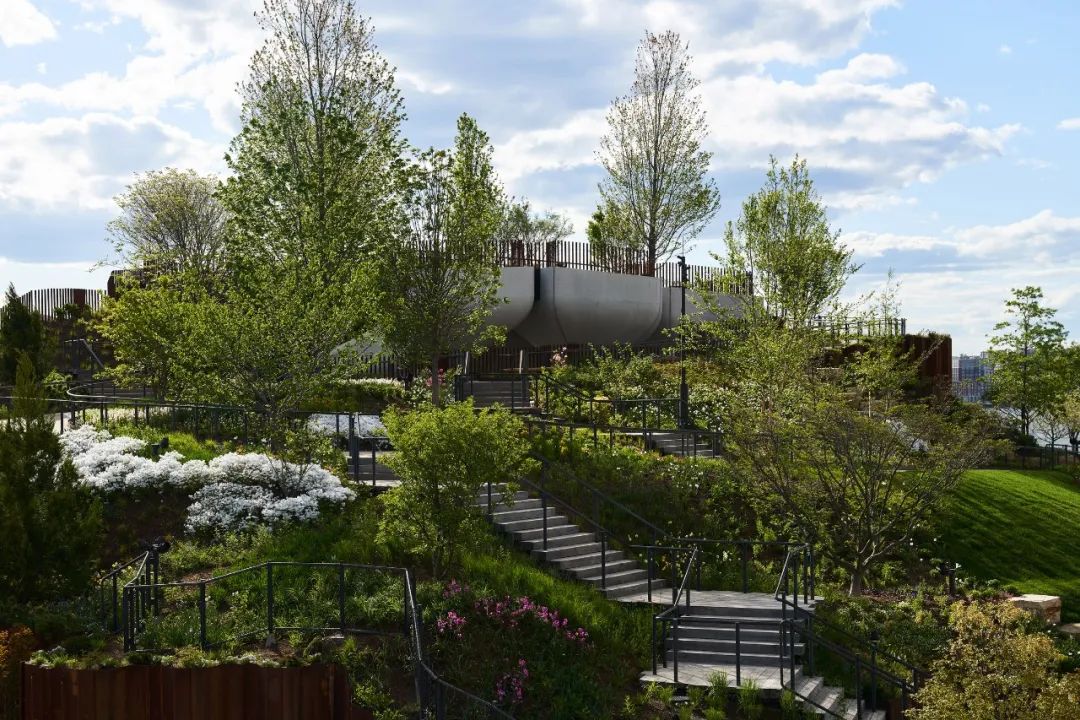

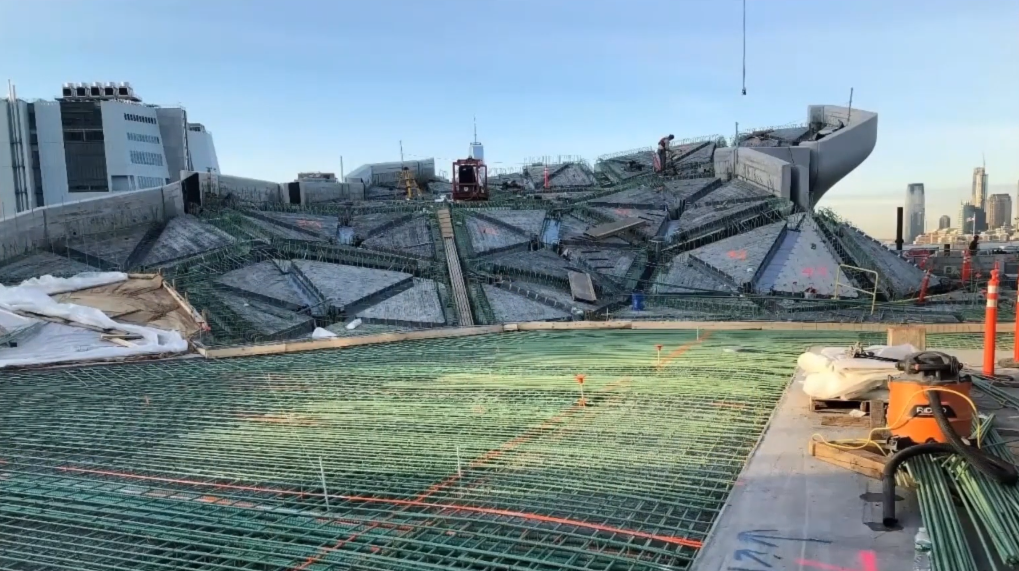

All trees are weighed upon delivery and assigned specific cranes based on their size and placed precisely into the reserved holes. Because Hudson is prone to strong winds, the design and engineering team resisted the risk of tree uprooting by tying the root structure to a wire mesh pre-drilled into the concrete slab.

640 3 5

640 35 8

▲Effects

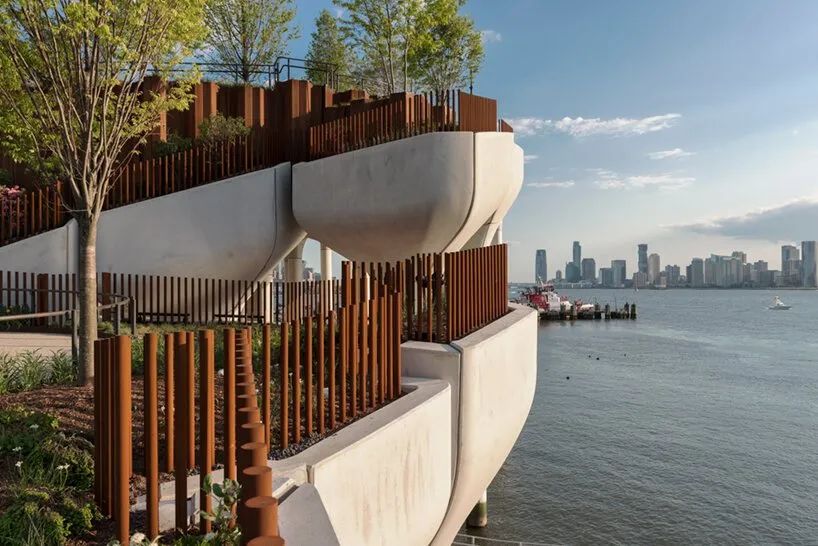

The leaves of the trees chosen for the park are on the small side

Minimize the impact of strong winds

640 39 5

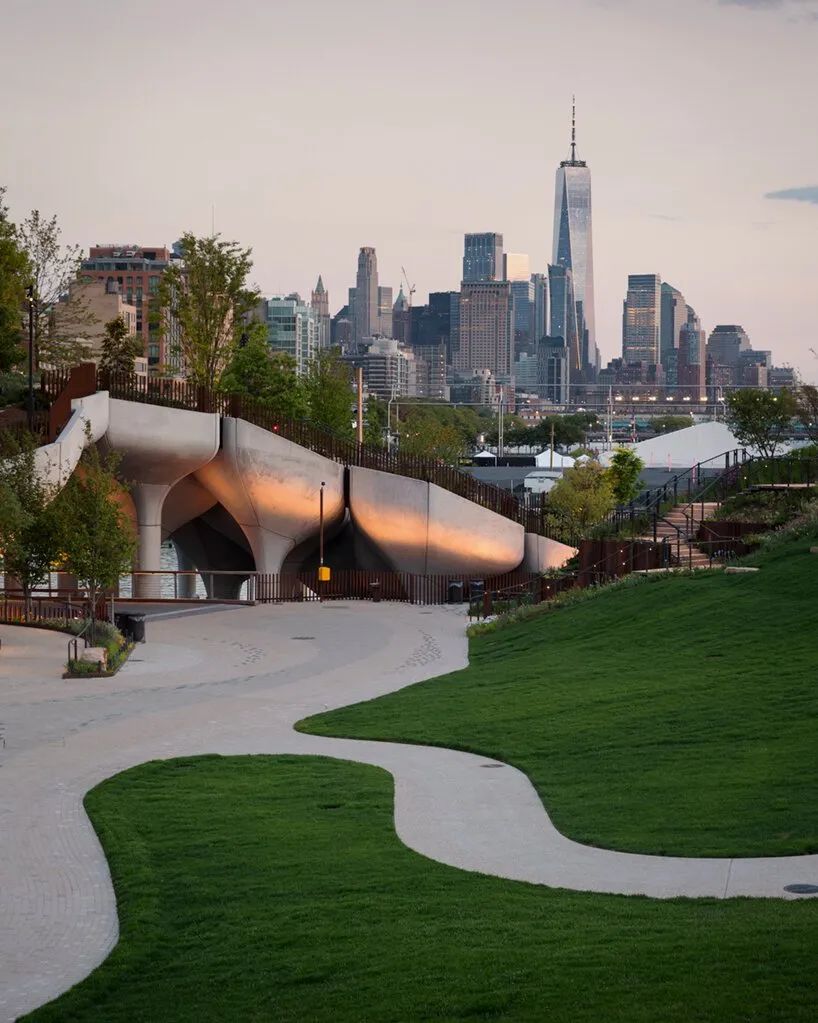

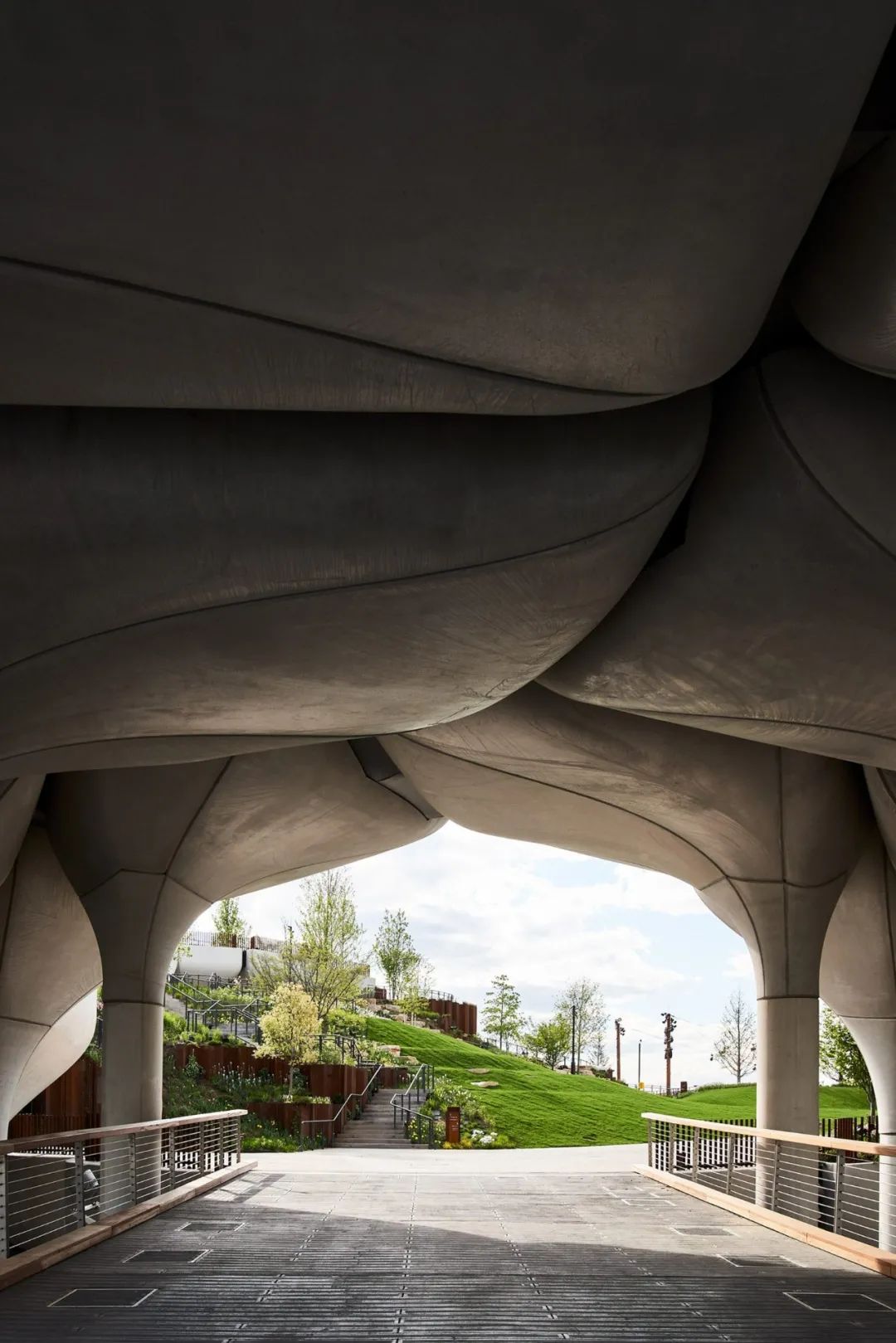

The passage under the park also provides people

The park’s lower walkway provides a comfortable space for people to relax.

640 38 5

640 37 7

640 40 5

Although Little Island has been a difficult project with many twists and turns

The project ended perfectly

The completed island is lush and poetic

A beautiful addition to Manhattan

After seeing this cool floating park

What do you think?
